AKKI2

Machine Control GNSS receiver

AKKI2 is a GNSS receiver specifically designed for machine control applications. It is the first receiver to bring all the functionality you need for a machine control application in one small device. Stream all your sensor and GNSS data over a single WIFI or ethernet connection to your controller.

FEATURES

BEST-IN-CLASS POSITION ACCURACY

  • High end receiver technology from Septentrio or Novatel
  • GPS, GLONASS, GALILEO
  • Dual antenna for heading

SMALLEST SIZE POSSIBLE

  • 170mm long
  • 140mm wide
  • 37mm high

INTEGRATED UHF modem

  • Integrated SATEL UHF modem
  • 70 MHz tuning range
  • Selectable channel width 12.5 and 25 kHz

INTEGRATED CAN BUS

  • Integrated CAN bus for Machine guidance systems
  • Connect your CAN sensors to your GNSS receiver
  • Data is accessible over the WIFI AP or ETHERNET port
  • Go for a truly wireless wifi connection to the MC controller
  • Works seamlessly with our other MC products

GALVANIC ISOLATION

  • Galvanicaly isolated power supply
  • Seperatly isolated stabilized 24V for CAN bus

WEBFRONT ENABLED

  • All settings are available to trough the webfront
  • Optimized for Mobile devices

Standard connectors

  • High quality standard M12 connectors
  • RF signals on TNC connectors
  • Easy SIM card replacement

WIFI ACCESS POINT

This GNSS receiver integrates a WIFI ACCESS POINT. Simply connect to the WIFI AP and get going.

  • Connect to the AP with you smartphone, tabled or laptop
  • Fully configure the unit using its mobile ready webfront
  • Access the NMEA and CAN data streams over the wifi connection for truly wireless operation

SPECIFICATIONS

GPRS modem :

  • Frequency bands 850, 900, 1800, 1900

Ethernet interface :

  • 4 pin 10/100 Mb

UHF SATEL modem :

  • Frequency range 403 – 473 Mhz
  • Max power 1W

CAN interface :

  • Fully galvanic isolation
  • Isolated 24V 20W power supply

Wifi interface :

  • 802.11 b/g/n
  • 2.412-2.472 GHz

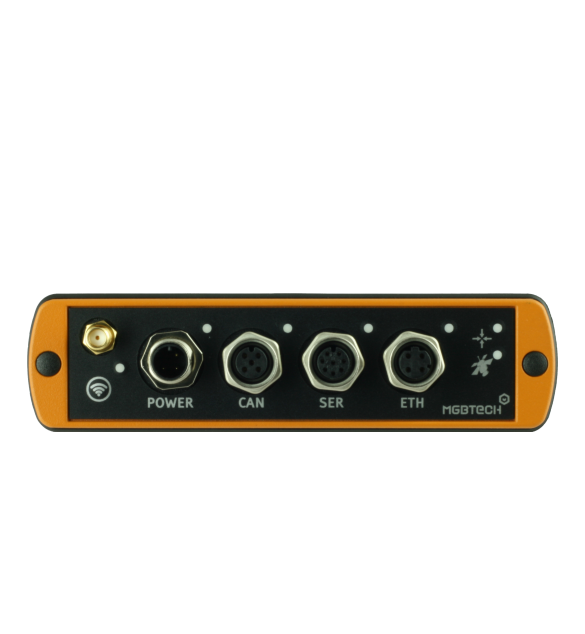

Back connections :

  • 1 x M12 A-code 3P (Power)
  • 1 x M12 A-code 8P female (COM1&2 + PPS)
  • 1 x M12 D-code 4P female (Ethernet)
  • 1 x M12 A-code 4P male (CAN)

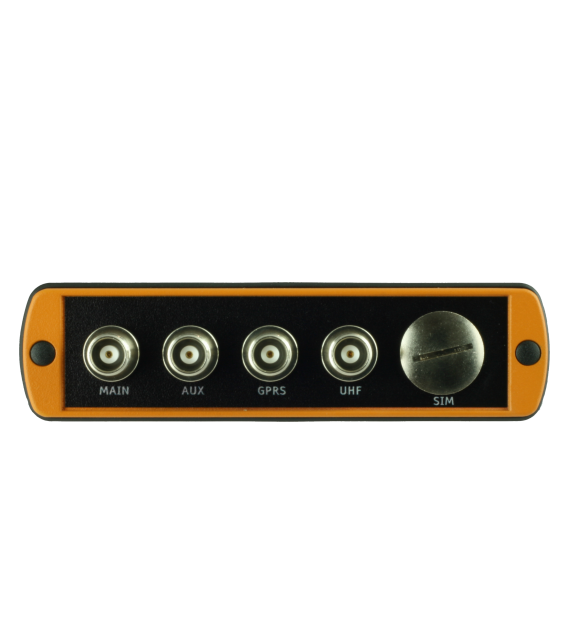

  • 1 x TNC (GNSS main)
  • 1 x TNC (GNSS aux)
  • 1 x TNC (GPRS)
  • 1 x TNC (WIFI 802.11b)
  • 1 x metal rotary SIM card cover

Power characteristics

  • Wide input : 10-30VDC

Environmental

  • Operational temperature -20°C +50°C

Mechanical :

  • 171mm x 140.60mm x 36.60mm
  • Extruded aluminum housing
  • IP 65 ingress protection
  • Weight : TBD
