4 PORT PPS PULSE SPLITTER
4-port PPS signal splitter

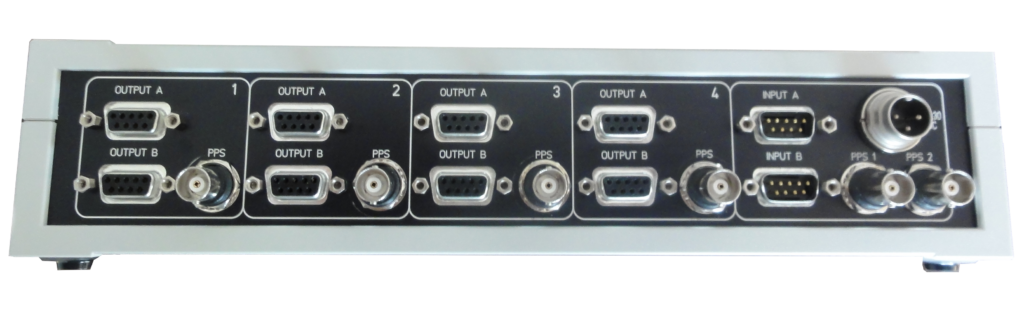

- 4 output ports
- Two PPS providers can be connected
- Distributes both RS- 232 serial and pps signal
- Pulse stretching
- Compact lightweight desktop casing
Made to endure
The MGB-Tech 4 port PPS splitter is a powerful, easy to use PPS splitter capable to distribute serial port communication and PPS signals to up to 4 listeners.
Technical Data
Technical specifications
- PPS input triggers on both 3.3V and 5V TTL levels

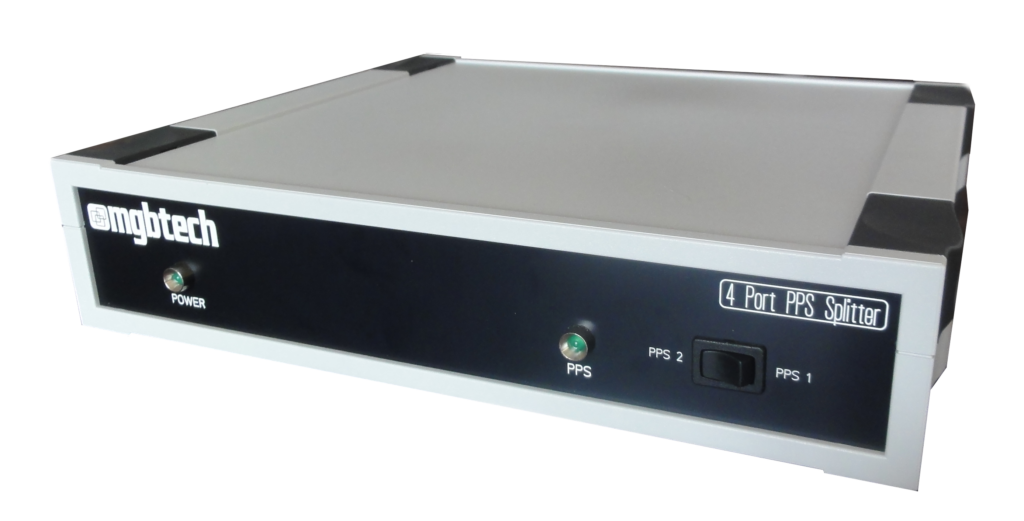

- Two front panel selectable inputs
- Front panel LED indicates PPS activity
- Outputs can directly drive a 50 Ohm load
- Pulse stretching (the PPS pulse is stretched to a minimum length of 25 ms)
- Compact lightweight desktop casing
- True RS-232 signal levels
- Supports baudrates up to 115200
Power characteristics
- 10-30 VDC (can run on 12 V and 24 V systems)
- Power consumption : < 1 Watt
Mechanical
- Dimensions : 31cm x 29cm x 7cm (w x d x h)
- Weight : Approx 1.3 Kg
