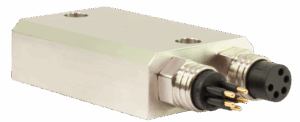

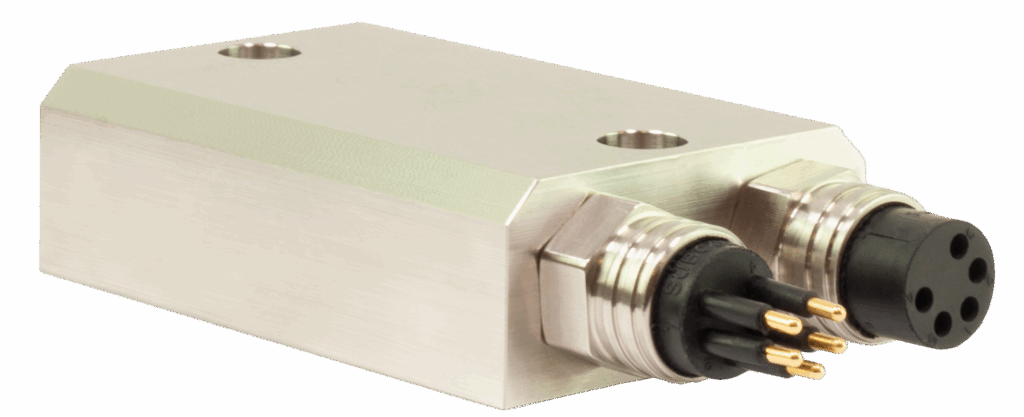

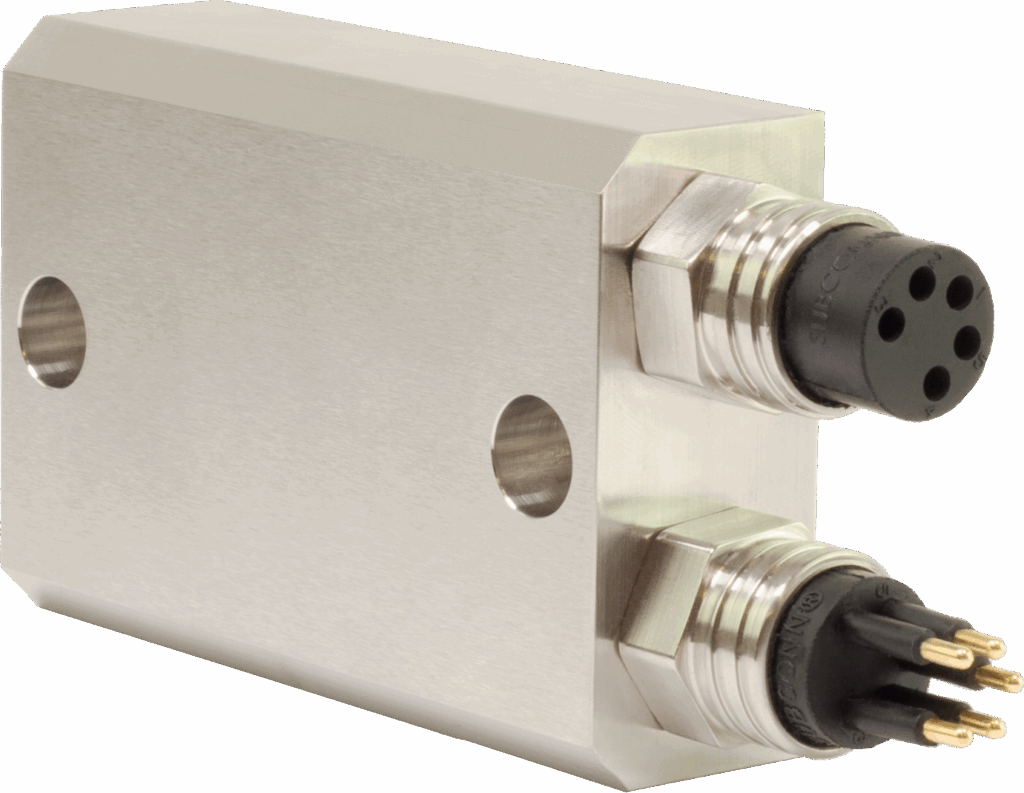

SAE3-HSU
Rugged stainless steel CANopen inclination sensor
- 3-axis inclination sensor
- 0.1° accuracy
- Fusion stabilized inclination
- CANopen profile CIA410
- Robust stainless steel housing with submersible connectors
- Small sensor format
- Software configurable
- Assured quality due to intensive in-house testing
- Seamless compatibility with other MGB-TECH products
Made to endure
This high-accuracy inclination sensor is engineered for demanding environments and fully compatible with other MGB-TECH products. Encased in a robust, waterproof aluminium housing, it features a gyro-compensated 3-axis angular sensor with full 360° measurement.
- MEMS technology
- Ensured accuracy
Every 8 milliseconds the internal position engine will determine the 3D inclination of the sensor. The engine fuses the measurements from the gyro and acceleration sensor through a Kalman filter that is specifically tuned for machine control applications giving you best in class results.
- MGB-TECH compatible
The SAE3-HSU sensor is designed for seamless compatibility with other MGB-TECH products, enabling immediate use without the need for additional customization.
- Configurable over CAN bus
- Multifunctional sensor
There are 24 possible freedoms for mounting the sensor in every position imaginable.
Technical Data
MEASUREMENT
Axes supported 3-axis
- 3-axis
Max. update rate
- 120 Hz
Max. update rate
-
Pitch: +/- 90°
Roll: +/- 180°
Quaternion output
- Available
Resolution
- TBD
Static accuracy
- 0.1°
COMMUNICATION & INTERFACE
Interface
- CAN - 2.0
Communication protocol
- CANopen - CIA 410
ELECTRICAL SPECIFICATIONS
Power Supply
- 10-30 VDC (can run on 12 V and 24 V systems)
Current Consumption
- < 1 Watt
Reverse polarity protection of the supply voltage (Y/N)
- Yes
ENVIRONMENTAL/MECHANICAL
Connection
-
Submersible Micro Circular 5P Male
Submersible Micro Circular 5P Female
Protection acc. To EN60529
- IP68
Operating Temperature
- From -40°C to +80°C
Submersible
- 250m Permanent
Material Housing
- Stainless steel 316
Mounting Style Bolt-on
- Bolt-on
Dimensions (LxWxH)
- 90x 60 x 28 mm
Weight
- Approx. 0.8 Kg
