PPS1-G4

4-port PPS signal splitter (legacy)

4 output ports
Two PPS providers can be connected
Distributes both RS-232 serial and PPS signal
Pulse stretching
Compact lightweight desktop casing

Made to endure

The MGB-Tech 4 port PPS splitter is a powerful, easy to use PPS splitter capable to distribute serial port communication and PPS signals to up to 4 listeners. This product has been superseded by the PPS3-G4.

Two selectable inputs

Two front panel selectable inputs allow fast system switchover to a backup system.

Pulse stretching

The PPS pulse is stretched to a minimum length of 25ms for reliable downstream processing.

TTL compatible

PPS input triggers on both 3.3V and 5V TTL levels.

RS-232 support

True RS-232 signal levels. Supports baudrates up to 115200.

Compact design

Compact lightweight desktop casing with front panel LED indicating PPS activity.

Technical Data

Technical specifications

PPS input triggers on both 3.3V and 5V TTL levels
Two front panel selectable inputs
Front panel LED indicates PPS activity
Outputs can directly drive a 50 Ohm load
Pulse stretching (PPS pulse stretched to minimum 25 ms)
Compact lightweight desktop casing
True RS-232 signal levels
Supports baudrates up to 115200

Power characteristics

10-30 VDC (can run on 12 V and 24 V systems)
Power consumption: < 1 Watt

Mechanical

Dimensions: 31cm x 29cm x 7cm (W x D x H)
Weight: Approx 1.3 Kg

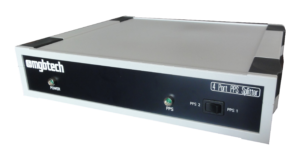

4 Port pulse per second (PPS) Pulse Splitter
