Our standard PPS3- G4 is designed for the most demanding applications. It is configurable to handle almost every PPS source and distribute the signals to multiple pulse consumers
This product features four output channels and is fully protected with complete galvanic isolation. It supports all communication protocols, parity configurations, and bit settings. Additionally, an NMEA splitter is fully integrated.

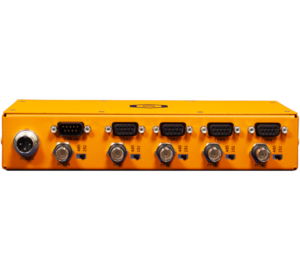

A standard D-SUB connector is used, allowing seamless switching between RS-232 and RS-485 on a per-channel basis. It supports data transmission speeds of up to 115200 baud, ensuring flexible and reliable communication.
Our PPS Pulse Splitter input provides extensive configuration options, including adjustable trigger voltage, input impedance, and selectable rising or falling edge detection, ensuring optimal flexibility and performance.
LED indicators provide a clear and intuitive status check for power, PPS pulse trigger and data communication, ensuring seamless monitoring and operation.
The toggle PPS pulse output is accessible via the D-SUB connector in RS-232 mode, with the signal level alternating on each input pulse for precise synchronization.
The housing is constructed from a strong, sturdy steel, designed to withstand operating temperatures ranging from -20°C to +50°C, ensuring reliability in demanding environments.
Take your splitter to the next level!
Through partnership, we deliver tailored engineering solutions—from land surveys to marine operations—designed to streamline processes, minimize risks, and maximize performance across industries
