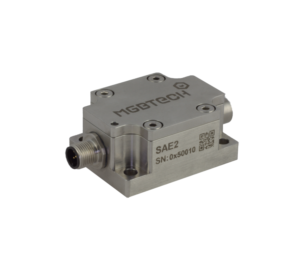

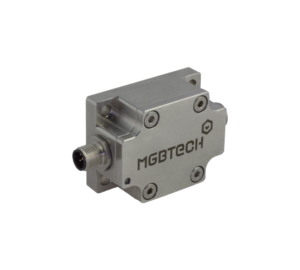

The SAE2 is a high accuracy angle CAN sensor. It is specifically designed to be used in demanding machine guidance applications. It can be software configured as a full 360° angle sensor, a +-180° pitch roll sensor. Its stainless steel housing and connectors provide protection in the harshest environments.
This fully solid state inclination sensor has a three axis accelerometer and gyro MEMS technology on board. These MEMS not only give you low noise highly reproducible accurate measurements but also make them stable over temperature.
Every 8 milliseconds the internal position engine will determine the 3D inclination of the sensor. The engine fuses the measurements from the gyro and acceleration sensor through a Kalman filter that is specifically tuned for machine control applications giving you best in class results.
Both the housing and the connectors are stainless steel giving you years of corrosion free usage even in salt water conditions.
The sensor is fully software configurable over the CAN bus. Different output parameters are available with configurable update rates.
There are also 24 possible freedoms for mounting the sensor in every position imaginable.
