Earthmoving
Designing rugged hardware while integrating guidance modules for earthmoving
MGB-Tech delivers rugged hardware and integrated guidance solutions to optimize your earthmoving operations
From precise machine positioning to complex articulation tracking of the excavator boom, our systems ensure reliable accuracy across the most demanding earthmoving projects.
By merging internal hardware development with specialized engineering integration, we transform raw positioning measurement data into clear, real-time guidance. We deliver:
-
Proven Precision Sensors
Reliable inclination and alignment data built to track pitch and roll amidst intense machine vibrations, giving operators clear, lag-free attachment feedback -
Multi-Interface GNSS Receivers
All-in-one positioning solution featuring versatile data routing (CAN, Ethernet, Serial, Wi-Fi) and multi-RF connectivity to keep in-cab display maps completely uninterrupted -
Robust and Compact Power Distribution Box
Heavy-duty power unit engineered to safely connect, power and protect both your sensors and controllers on the machine, keeping critical visual guidance screens continuously alive -
Encoder and Digital I/O Gateway
High-speed data hub that seamlessly translates raw machinery telemetry into simple, real-time visual guidance indicators on the operator's monitor -
Integrated Hardware Development
We also design and manufacture custom positioning hardware while seamlessly embedding the necessary technical modules to solve your unique earthmoving configurations
Machine Guidance Application
The drawing below illustrates our product range deployed on an excavator for demonstration purposes.
1.Gyro Stabilized 3-Axis Inclination Sensors
High-accuracy inclination sensors built from rugged, shock-absorbing materials are distributed across the moving joints of the boom, blade, and bucket.
Recognizing that every excavation site brings unique challenges, we provide several hardware options engineered to fit the precise demands of your job:
-
Housing Choices
Lightweight aluminum or heavy-duty stainless steel depending on the intensity of the operation -
Connector Options
Industry-standard M12 connectors or subsea connectors to guarantee real-time attachment position and articulation tracking under intense tool impact and harsh site conditions
2.Multi-interface GNSS Receiver with RTK Correction
The high-precision GNSS receiver is mounted safely inside the protected environment of the cabin or the engine cabin. This strategic placement secures critical satellite telemetry while ensuring structural longevity.The GNSS receiver provides both multi-interface data routing as well as a multi-RF interface.
Multi-interface data routing
- CAN
- Ethernet
- Serial
- WIFI
Multi-RF interface
- MAIN
- AUX
- Cellular
- UHF Radio
3. Power Distribution Box
The robust power distribution box is mounted safely inside the cabin or engine cabin, keeping sensitive electronic connections completely protected from severe rig vibrations and harsh outdoor elements.
4. Encoder and Digital & I/O Gateway*
A specialized I/O and digital gateway is positioned near the base of the excavator. Built from premium stainless steel and industry-standard M12-connectors, this rugged unit ensures reliable communication between diverse sensors, controllers and operator systems.
This unit also supports direct handling of encoder signals, I/O and a gateway to CANopen, giving operators the flexibility to control position data and machine functions through a single, consolidated interface.
Recognizing that every excavation site brings unique challenges, we provide several hardware options engineered to fit the precise demands of your job:
-
Housing Choices
Lightweight aluminum or heavy-duty stainless steel depending on the intensity of the operation -
Connector Options
Industry-standard M12 connectors or subsea connectors to guarantee real-time attachment position and articulation tracking under intense tool impact and harsh site conditions
*Available from 2027
Because we are both hardware developers and integrators, we can always adapt or customize any of these hardware components to match your exact project requirements.
Our machine guidance components and software suitable for earthmoving operations

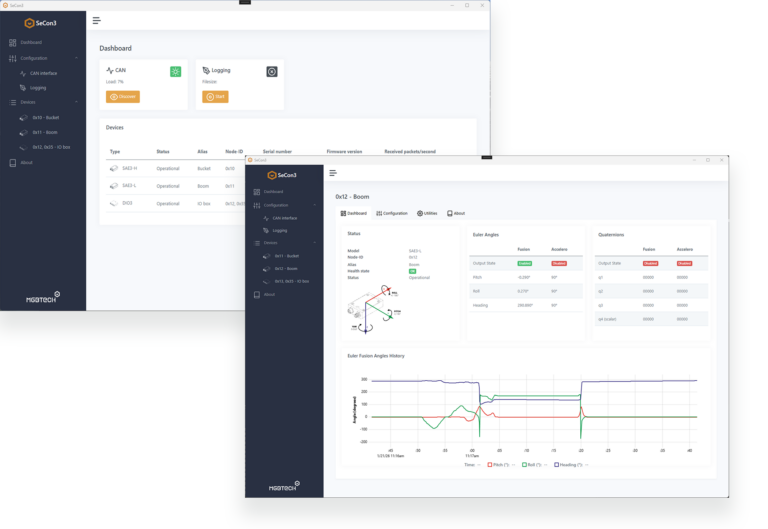

SeCon3 Software
Discover our software configuration
tool, designed to simplify and streamline the setup
of MGB-TECH CANopen-based machine guidance
devices.
